ACH531 ABB drives for HVAC

Get a Price/Quote

MOQ : 1 Nos

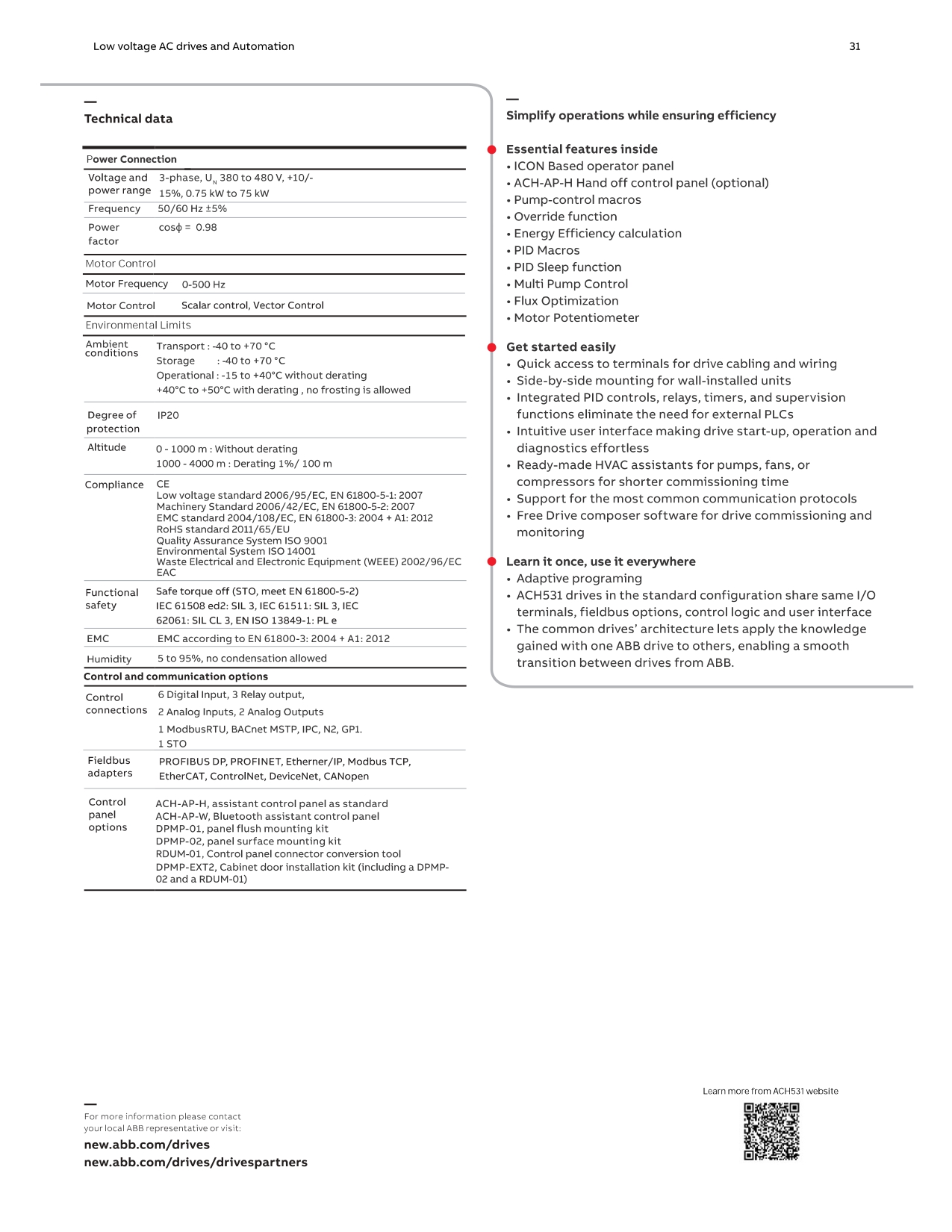

ACH531 ABB drives for HVAC Specification

Connector Type
Screw Terminals

Shape
Rectangular

Surface Finish
Matte

Mounting Type
Wall Mount

Efficiency
Up to 98%

Operating Temperature
-10C to +50C

IP Rating
IP21

Feature
Advanced PID Control, Built-In EMC Filter

Insulation Material
Thermoplastic

Overheating Protection
YES

Humidity %
Max 95% non-condensing

Power Factor
0.98

Product Type
HVAC Drive

Application
Heating, Ventilation and Air Conditioning Systems

Protection Level
Overload, Short-Circuit, Over Voltage

Frequency (MHz)
50/60 Hz

Rated Voltage
230/400 V

Energy Consumption
Low, Energy Efficient

Output Type
Analog & Digital

Color
Grey

Dimension (L*W*H)
320 mm x 250 mm x 170 mm

Weight
4.5 kg

Phase
Three Phase

Input Voltage
230/400 V

Size
Standard

Connection Type
Wired

Material
Industrial Grade Plastic and Metal

No Of Poles
3

Display
LCD Display

Control Method
V/Hz and Sensorless Vector Control

Max Output Current
20A

Communication Protocols
Modbus RTU, BACnet MS/TP

Cooling Method
Air-cooled

Motor Compatibility
Asynchronous and Permanent Magnet Motors

Start/Stop Method
Keypad, Remote

Noise Level
<65 dB

Min Output Current
0.7A

Fault Diagnostics
Self-Diagnostic Function

Drive Type
Variable Frequency Drive

Enclosure
Robust Casing for Industrial Environment

ACH531 ABB drives for HVAC Trade Information

Minimum Order Quantity
1 Nos

Main Domestic Market
Rajasthan

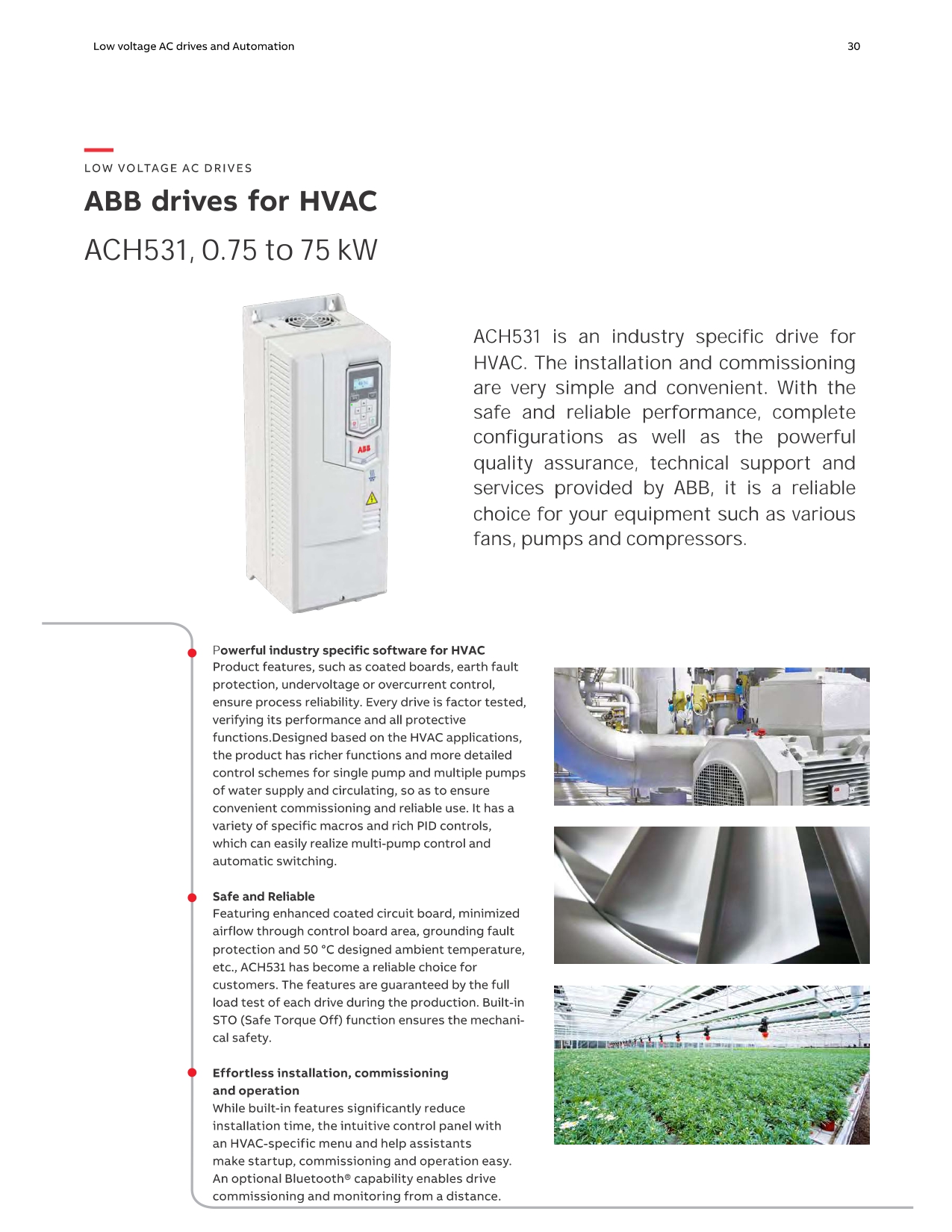

About ACH531 ABB drives for HVAC

Built-in EMC filter and double DC reactors Built-in EMC filter and double DC reactors are provided as the standard configuration in the full-power range. The EMC filter conforms to EN 61800-3 C2 standard, is applicable in the industrial and commercial environment and has lower high frequency radiation to reduce interference to outside. The built-in double DC reactors greatly reduce the harmonics as per IEC/EN 61800-3-12 at nominal load

Designed for reliability Featuring enhanced coated circuit board, minimized air flow through control board area, grounding fault protection up to 50 C (with de-rating) designed ambient temperature, etc., ACH531 has become a reliable choice for customers. The features of the drive are guaranteed by the full load test of each drive during the production.

Powerful specific software for HVAC The product is designed based on HVAC applications. It has richer functions and more detailed control schemes for various HVAC applications so as to ensure convenient commissioning and reliable use. It has a variety of dedicated macros and rich PID controls, which can easily program HVAC application.

Versatile Control for Modern HVAC Needs

ABB ACH531 drives are designed to handle both asynchronous and permanent magnet motors, utilizing V/Hz and sensorless vector control methods. This flexibility ensures optimal control and adaptability across various HVAC applications, providing reliable and energy-efficient performance tailored to modern building management requirements.

Ease of Integration and Operation

Equipped with Modbus RTU and BACnet MS/TP protocols, the ACH531 enables seamless integration with building automation systems. The intuitive LCD display and multiple start/stop optionsincluding keypad and remotesimplify configuration and daily operation, while screw terminal connections ensure secure and straightforward wiring.

Built for Durability and Efficiency

Housed in an industrial-grade, robust casing with an IP21 rating, the ACH531 withstands challenging environments. Its air-cooled, low-noise design creates a comfortable atmosphere, and advanced overload, short-circuit, and overvoltage protections safeguard your system, while high efficiency and a built-in EMC filter support long-term sustainability.

FAQs of ACH531 ABB drives for HVAC:

Q: How does the ACH531 ABB drive benefit HVAC applications?

A: The ACH531 ABB drive offers precise motor control, advanced PID features, and compatibility with various motor types, making it ideal for optimizing energy use and performance in heating, ventilation, and air conditioning systems.

Q: What communication protocols are supported by the ACH531 ABB drive?

A: The drive comes equipped with Modbus RTU and BACnet MS/TP protocols, enabling easy integration with most industry-standard building management and automation systems.

Q: When should I use sensorless vector control instead of V/Hz control?

A: Sensorless vector control is recommended when you require greater accuracy in speed and torque regulation, particularly for critical motor loads or varying conditions. Use V/Hz control for standard energy-saving applications.

Q: Where can I install the ACH531 ABB drive?

A: The ACH531 is designed for wall mounting in indoor environments, featuring an IP21 enclosure that provides protection against solid objects and limited moisture, ideal for industrial and commercial HVAC spaces.

Q: What fault diagnostics features does the drive provide?

A: The ACH531 includes a self-diagnostic function that displays real-time fault codes and operational statuses on its LCD screen, simplifying maintenance and minimizing system downtime.

Q: How is the ACH531 ABB drive started and stopped?

A: You can operate the drive using its built-in keypad, or connect it for remote start/stop functionality. This flexibility allows for both manual and automated control depending on your HVAC setup.

Q: What measures ensure the safety and durability of the ACH531?

A: The drive is built with industrial-grade plastic and metal, includes overload, short-circuit, overvoltage, and overheating protection, and features a matte-finished robust casing to ensure long-lasting and safe operation in demanding environments.
