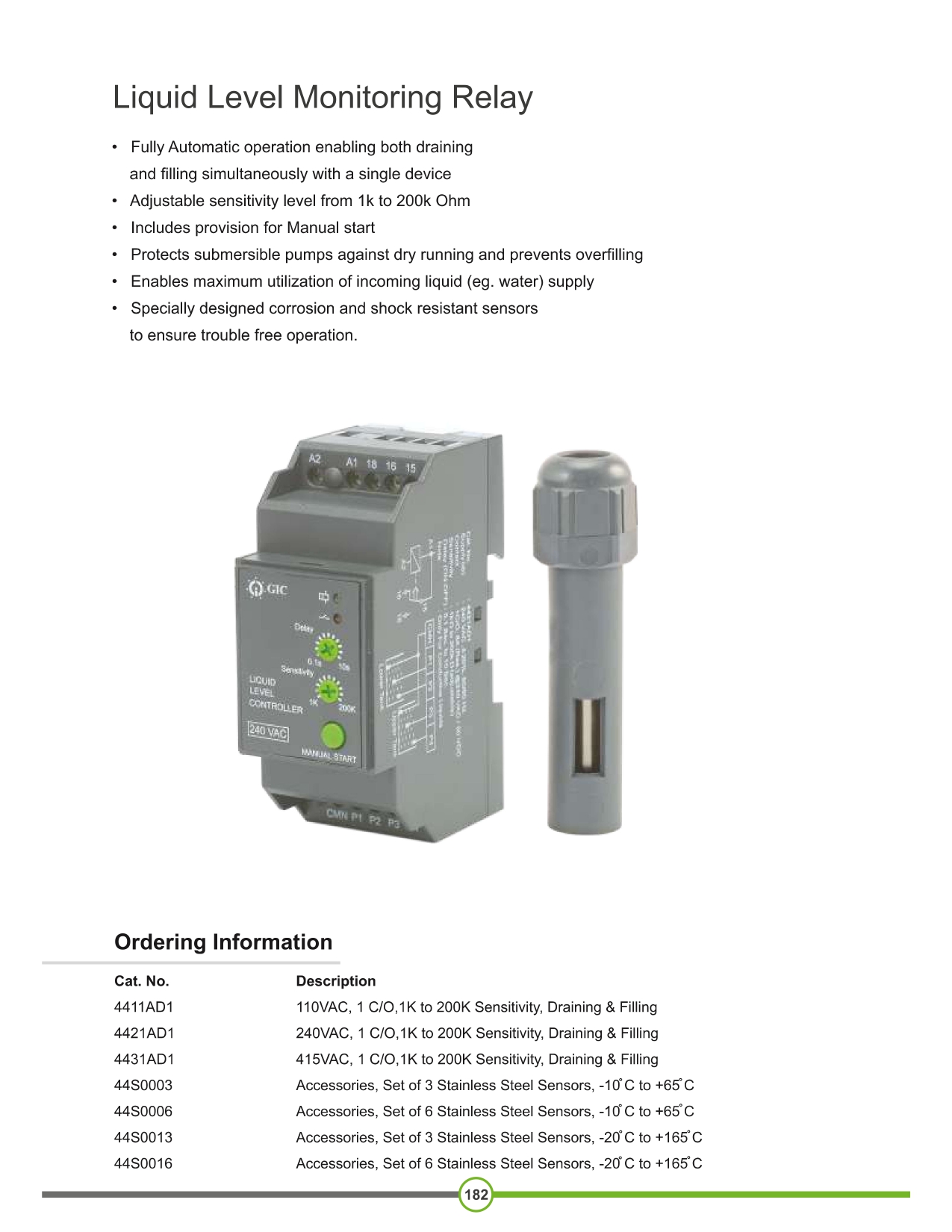

Liquid Level Monitoring Relay (GIC)

Name: Liquid Level Monitoring Relay (GIC)
Brand: Tech Durga Engineering
Price: 900.00 INR
Availability: InStock

Price 900.00 INR/ Piece

Get a Price/Quote

MOQ : 3 Pieces

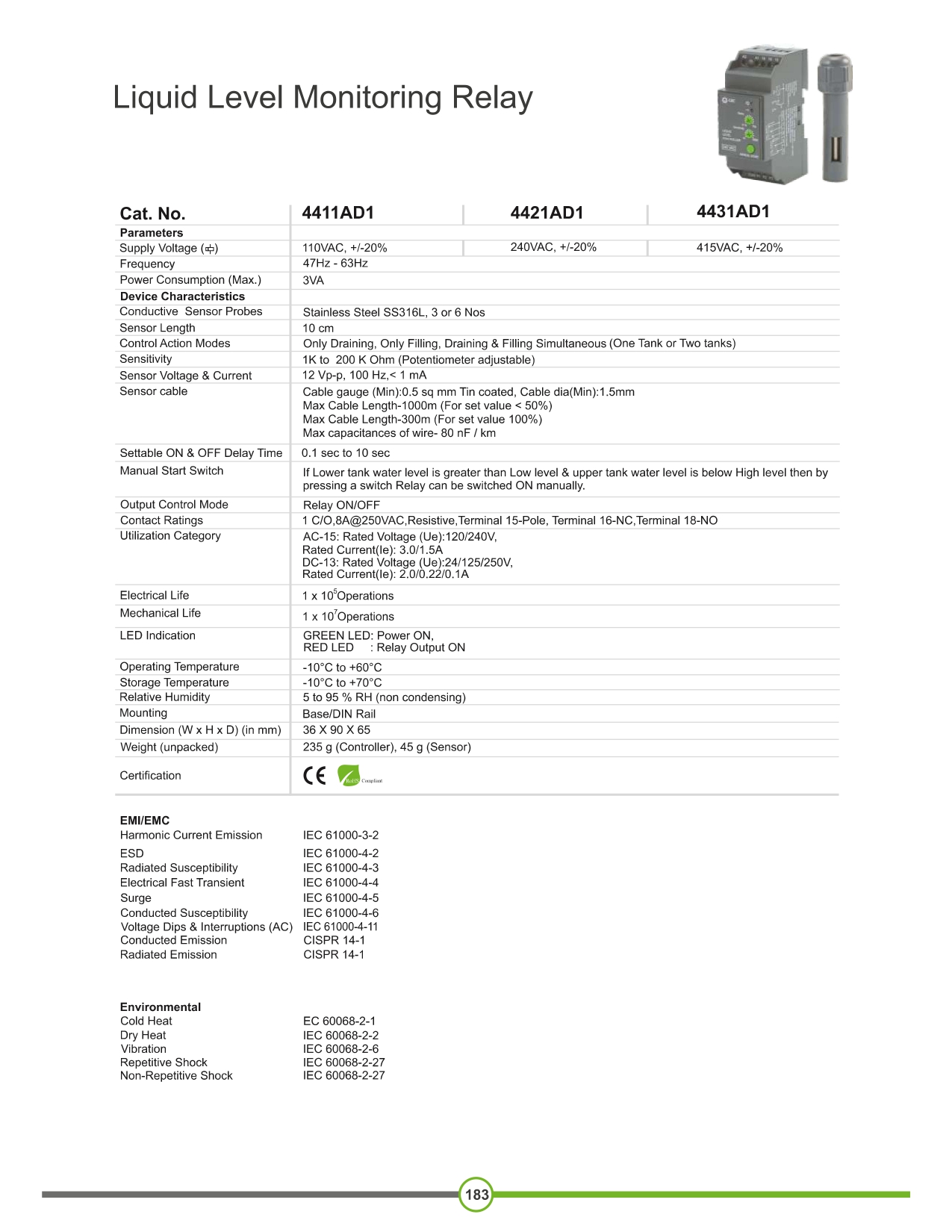

Liquid Level Monitoring Relay (GIC) Specification

Automation Grade
Automatic

Features
Best Quality

Frequency
50 Hertz (HZ)

Material
PVC

Voltage
220 Volt (v)

Color
Gray

Warranty
1 Year

Liquid Level Monitoring Relay (GIC) Trade Information

Minimum Order Quantity
3 Pieces

Main Domestic Market
Rajasthan

About Liquid Level Monitoring Relay (GIC)

A "Liquid Level Monitoring Relay (GIC)" is an electronic device manufactured by GIC (likely referring to GIC India) that uses electrical probes to detect the level of liquid in a tank or container, and then activates a relay switch to trigger actions like turning on/off pumps or alarms based on the detected liquid level, essentially providing automatic control over filling and draining processes in industrial applications.

Key points about a GIC Liquid Level Monitoring Relay:

Function:

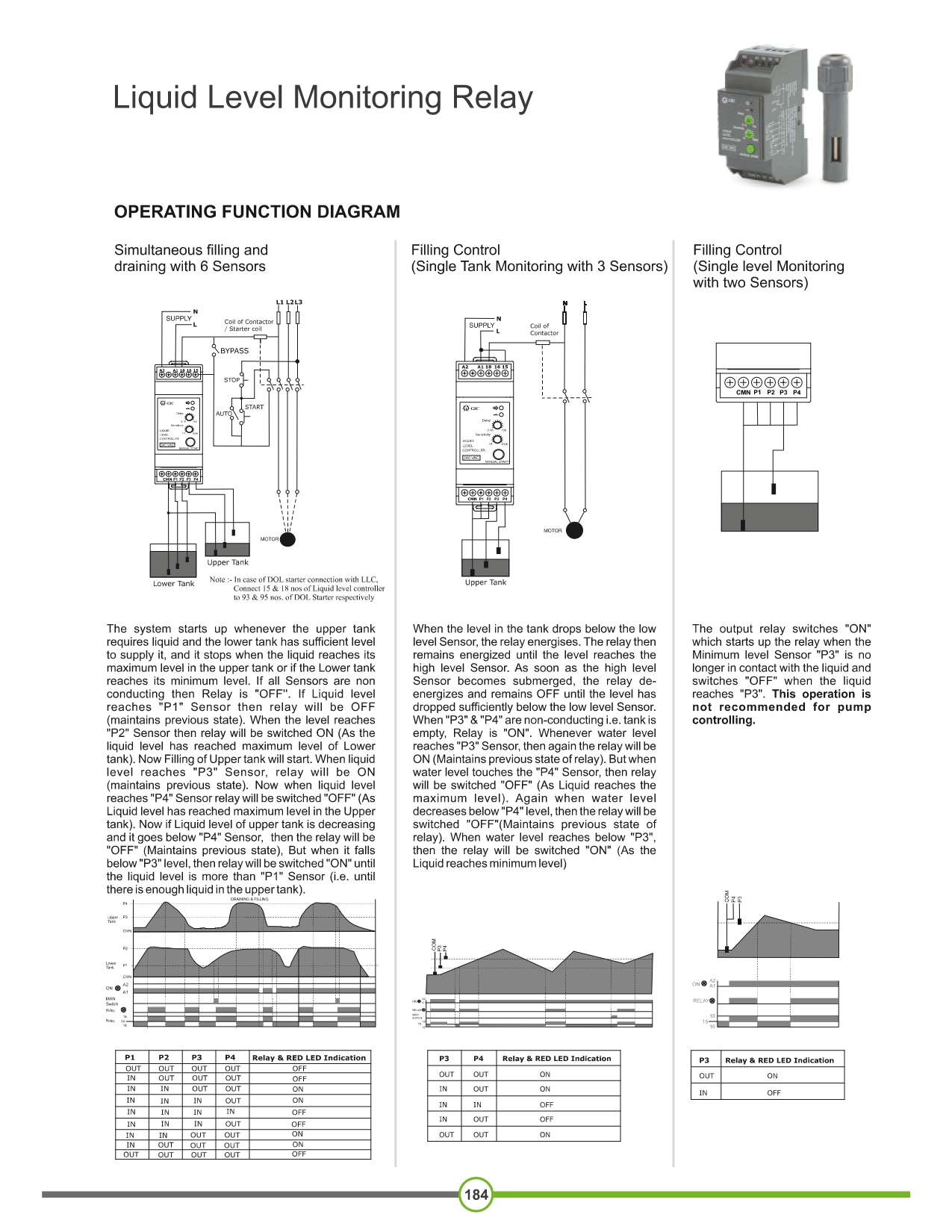

It monitors the liquid level in a tank by detecting the electrical conductivity between probes immersed in the liquid.
Sensor Probes:

Multiple probes are used to identify different liquid levels (high, low, intermediate).
Relay Output:

When the liquid level reaches a predefined point, the relay switches on, allowing control of external devices like pumps or valves.
Adjustable Sensitivity:

Often allows for adjusting the sensitivity of the probes to suit different liquid types and conductivities.

Applications:

Tank Level Control: Maintaining optimal liquid levels in storage tanks.
Pump Protection: Preventing pumps from running dry by automatically shutting off when the liquid level gets too low.
Overfill Prevention: Avoiding overfilling of tanks by activating a signal when the liquid level reaches a high point.

Important aspects of a GIC Liquid Level Monitoring Relay:

Multiple Level Detection:

Capability to monitor and trigger actions at different liquid levels using multiple probes.
Automatic Operation:

Once set up, the system automatically adjusts pump operation based on liquid level changes.
Industrial Grade Design:

Built to withstand harsh industrial environments and operate reliably with various liquid types.
