ACH580 ABB drives for HVAC

Get a Price/Quote

MOQ : 1 Nos

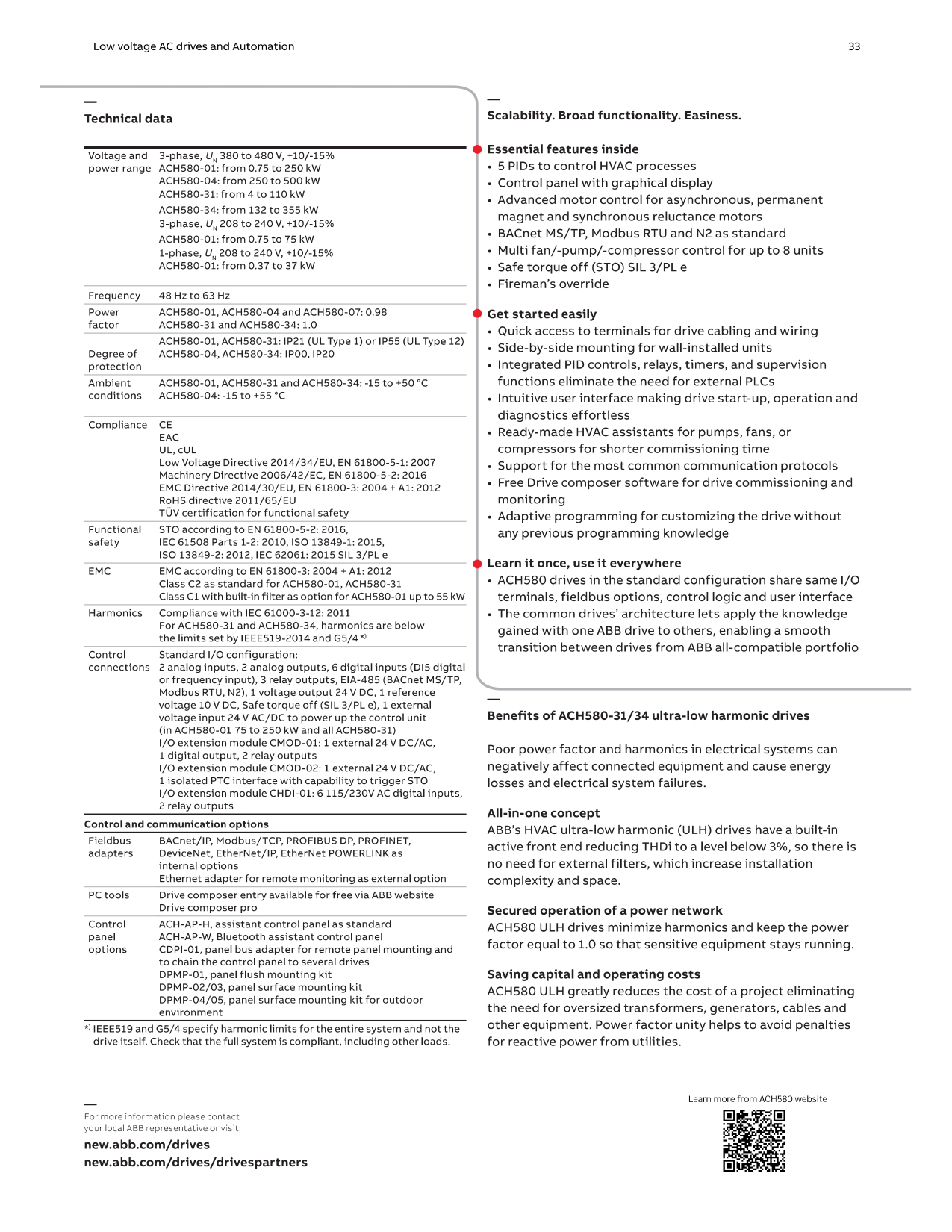

ACH580 ABB drives for HVAC Specification

Humidity %
5% 95% (non-condensing)

Efficiency
Up to 98%

Operating Temperature
-15C to +50C (de-rating above +40C)

Insulation Material
Industrial grade polymer/ABS

Shape
Rectangular, compact design

Mounting Type
Wall mount, cabinet mount

Feature
Integrated EMC filter, PID control, embedded Modbus RTU & BACnet, drive assistant control panel

Power Factor
>0.98 with built-in active supply unit

Overheating Protection
Built-in temperature monitoring and protection

Surface Finish
Powder coated finish

Connector Type
Removable terminal blocks

IP Rating
IP21 as standard, IP54 optional

Product Type
Variable Frequency Drive (VFD) for HVAC

Application
Heating, Ventilation, Air Conditioning (HVAC) systems in buildings, commercial and industrial environments

Protection Level
Overcurrent, short-circuit, earth fault, overvoltage, undervoltage, motor phase loss and more

Frequency (MHz)
0.5 599 Hz

Rated Voltage
208 480 V AC

Energy Consumption
Energy efficient operation with advanced motor control, real-time monitoring

Output Type
Variable voltage, variable frequency AC

Color
ABB light grey

Dimension (L*W*H)
Model dependent (e.g., 500 x 200 x 300 mm for typical unit)

Weight
Varies by model (typically 12 kg 56 kg)

Size
Model dependent

Input Voltage
208 480 V AC, 3-phase / Single-phase input (model dependent)

Phase
Three phase (available in single phase for limited range)

No Of Poles
2/4/6

Connection Type
Screw terminal, plug-in connector

Material
Metal and plastic housing

Display
LCD graphical display with help and diagnostic messages

Standards Compliance
CE, UL, cUL, RoHS, IEC/EN 61800-5-1

External I/O
Multiple digital/analog inputs and outputs, relay outputs

Control Panel
Detachable, graphical, multi-language display

Parameter Programming
PC tool (Drive Composer), control panel, or fieldbus

Password Protection
User access restriction/password function

Motor Control Type
Vector control, scalar control, and direct torque control (DTC)

Bypass Option
Integrated or external bypass modules (optional)

Communication Protocols
BACnet MS/TP, Modbus RTU, Modbus TCP, optional fieldbus modules (Ethernet/IP, Profibus, etc.)

EMC Compliance
Category C2 and C3 as per IEC/EN 61800-3

Altitudes for Operation
Up to 4000 m (de-rating above 1000 m)

Noise Level
Low-noise operation, compliant with building standards

Brake Chopper
Integrated (in select models and ratings)

Maximum Output Current
Model dependent, up to 150A

Alarm & Fault Log
Integrated with time-stamped event and fault history

Firmware Update
Upgradeable via USB/PC tools

Cooling Method
Forced air cooled

ACH580 ABB drives for HVAC Trade Information

Minimum Order Quantity
1 Nos

Main Domestic Market
Rajasthan

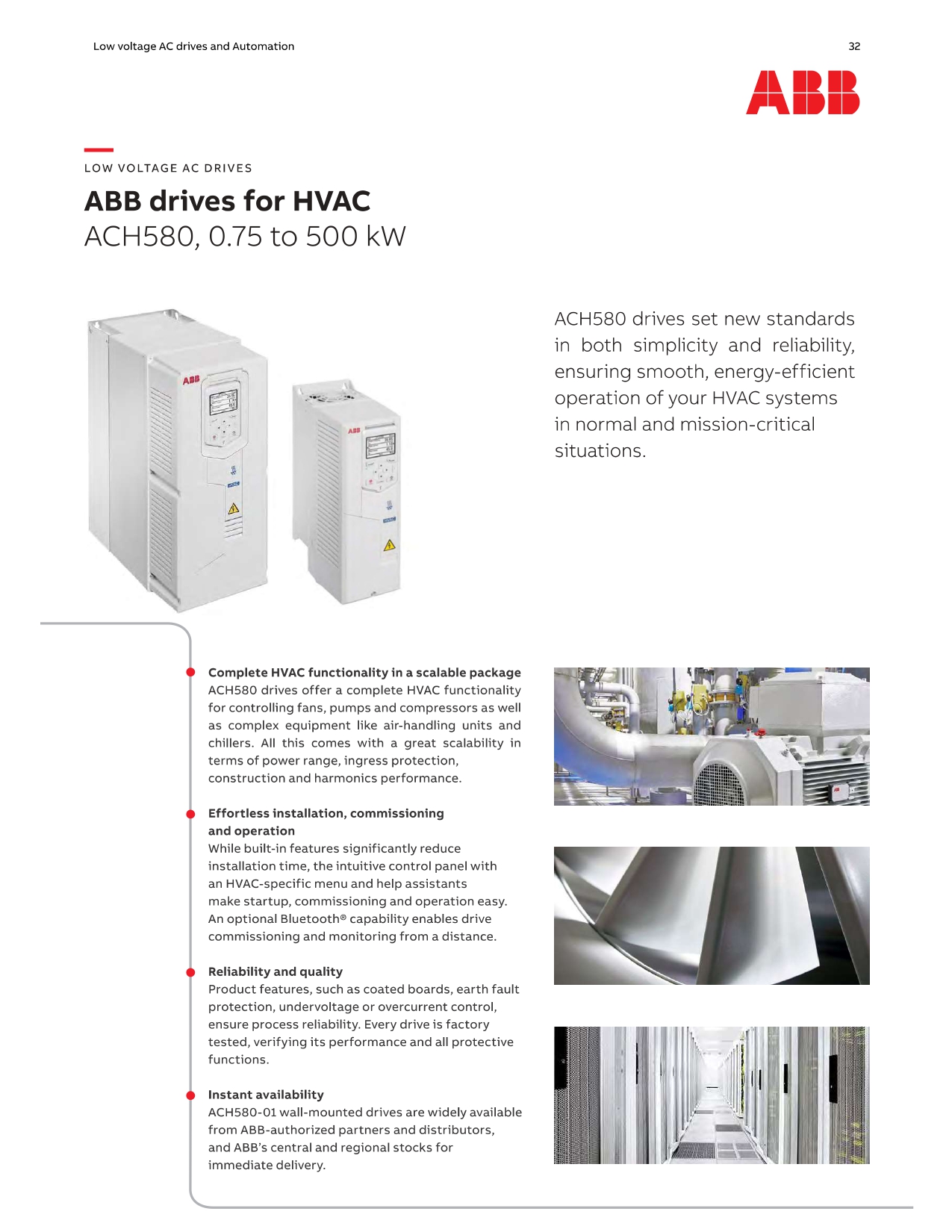

About ACH580 ABB drives for HVAC

The ABB ACH580 is a line of variable frequency drives (VFDs) specifically designed for HVAC (Heating, Ventilation, and Air Conditioning) applications, offering easy installation, intuitive control, and optimized energy efficiency, particularly suitable for controlling motors in systems like air handling units, chillers, and cooling towers, with features like built-in network communication protocols like BACnet, and a user-friendly control panel for simple configuration and monitoring; it can be mounted on a wall or in a cabinet depending on the environment and comes with various protection levels (IP21 or IP55) to withstand different operating conditions.

Key points about the ACH580:

Dedicated to HVAC:

Designed specifically for HVAC applications, considering the unique needs of motors used in heating, ventilation, and cooling systems.
Simple operation:

User-friendly control panel with clear settings and built-in wizards to streamline commissioning and operation.
Connectivity:

Supports various communication protocols including BACnet for seamless integration with building management systems.
Energy efficiency:

Optimizes motor performance to reduce energy consumption across different operating conditions.
Flexible mounting:

Can be wall-mounted or installed in a cabinet depending on the application and space constraints.
Wide range of motor control:

Compatible with various AC motor types, including high-efficiency permanent magnet motors.
Environmental robustness:

Available in different IP ratings to suit various environments like dusty or wet areas.

Versatile Motor Control for HVAC Systems

The ACH580 ABB drives provide sophisticated motor control methods, including vector control, scalar control, and direct torque control (DTC), ensuring efficient and precise operation of HVAC equipment. Their wide frequency range and adjustable output make them suitable for various fan and pump applications, enhancing energy savings and system reliability.

Comprehensive Communication and Integration

Supporting integrated BACnet MS/TP, Modbus RTU, Modbus TCP, and optional advanced fieldbus modules, the ACH580 drives facilitate seamless building automation integration. The flexible connectivity options and embedded protocols ensure compatibility with modern BMS systems, supporting both legacy and future-ready installations.

User-Friendly Display and Diagnostics

Featuring a detachable, graphical LCD display, the ACH580 offers intuitive navigation in multiple languages, real-time performance monitoring, and immediate access to detailed help and diagnostic messages. Integrated alarm and fault logs with time stamps help maintenance teams quickly pinpoint and resolve issues, ensuring system uptime.

FAQ's of ACH580 ABB drives for HVAC:

Q: How can I program the parameters of the ACH580 ABB drive for HVAC applications?

A: Parameters for the ACH580 can be programmed using the detachable control panel, Drive Composer PC tool via USB connection, or remotely via fieldbus communication. The graphical interface allows for easy navigation, cloning settings, and storing user profiles for fast setup or troubleshooting.

Q: What are the benefits of using direct torque control (DTC) in the ACH580 drive?

A: Direct torque control (DTC) delivers highly precise and responsive motor control, improving the efficiency and reliability of HVAC systems. This advanced method minimizes energy consumption, enhances dynamic performance, and reduces mechanical stress on motors, resulting in significant operational savings.

Q: When should the optional fieldbus modules, such as Profibus or Ethernet/IP, be used with the ACH580?

A: Optional fieldbus modules like Profibus or Ethernet/IP are advisable when integrating the ACH580 with advanced or specialized building management systems (BMS) that require high-speed communication and enhanced interoperability. These modules expand connectivity beyond the standard BACnet and Modbus protocol offerings.

Q: Where can the ACH580 drive be installed, and what environmental conditions are supported?

A: The ACH580 drives are designed for flexible installation, including wall and cabinet mounting. They support operation at altitudes up to 4000 m (with de-rating above 1000 m), ambient temperatures from -15C to +50C (with de-rating above +40C), and humidity levels of 5% to 95% non-condensing. IP21 is standard, with IP54 available for harsher conditions.

Q: What protection features does the ACH580 provide for connected motors and the drive itself?

A: The ACH580 incorporates comprehensive protection measures, including overcurrent, short circuit, earth fault, overvoltage, undervoltage, motor phase loss, and built-in overheating protection with temperature monitoring. These protections ensure system safety and longevity in demanding HVAC environments.

Q: How can I benefit from the energy management features of the ACH580 drive?

A: With advanced motor control, real-time monitoring, and integrated PID, the ACH580 optimizes energy usage, reduces operational costs, and enhances system performance. The drive's high efficiency (up to 98%) and energy-saving algorithms help cut energy consumption, contributing to sustainable building operations.
